DIY Arduino AI Bionic Robot Hand Kit | 5-Finger Mechanical Arm Set
  • New

Arduino AI Bionic Robotic Hand Kit - 5-Finger Mechanical Arm DIY Smart Robot Engineering Set

Hiwonder
Discover the uHand robot hand, an innovative robotic solution built on the Atmega328 platform, fully compatible with Arduino programming. Its open-source nature, combined with comprehensive tutorials and development examples, makes it perfect for beginners and advanced users alike. The uHand features a 6-channel knob controller, Bluetooth module, and six anti-blocking servos, offering versatile control options including app and wireless glove control. With multiple expansion ports, you can integrate advanced sensors such as AI vision modules, accelerometers, touch sensors, and glowing ultrasonic sensors, unlocking powerful capabilities like sonic ranging and pose control. Ideal for creative DIY robotics projects, uHand sparks limitless innovation. Choose between the Starter Kit, which includes core components, or the Standard Kit that adds advanced sensors and modules for enhanced functionality. Empower your robotics journey with uHand and transform your ideas into reality with ease and flexibility.

✨Free delivery✨

check In Stock
Hurry! only 500 items left in stock.
€299.99
Quantity


<b>15</b> Buying this product you will collect 40 points with our loyalty program. Your can convert 40 points in your account into a voucher for a future purchase.

Visa Visa Visa Visa Mastercard Bank Transfer Klarna

Robot Hand with Arduino Open Source AI Bionic Robotic Hand Five Fingers Solely Movement Mechanical Arm DIY Smart Robot & Engineering Kits, Science/Coding/Programming Set, Standard Kit

uHand robot hand is an open-source robot hand for beginners. Built upon Atmega328 and compatible with Arduino, it boasts a 6-channel knob controller, Bluetooth module, 6 anti-blocking servos, and other high-performance hardware. It also offers secondary development interfaces for sensor expansions to empower your creative engineering projects.

For Arduino Compatibility
For Arduino Compatibility

Compatible with Arduino hardware interfaces and Arduino IDE. Open-source code with detailed comments is provided for your development, making it highly accessible for creators and hobbyists.

Dynamic Control with Knob
Dynamic Control with Knob

Control palm joint movements quickly through the knob potentiometer, immersing yourself in the seamless and responsive operation of this intelligent robotic hand.

APP Control
APP Control

Take command of uHanduno effortlessly through the dedicated app, allowing you to execute precise movements with the tap of a button or a smooth swipe of a slider interface.

Offline Motion Editing
Offline Motion Editing

Record palm motions swiftly with the knob potentiometer and buttons. This feature supports offline motion editing and operation, granting you full control anytime, anywhere.

Anti-blocking Servo
Anti-blocking Servo

Built-in stall protection algorithm ensures the servo won’t burn out due to blockage or collision, significantly extending its lifespan and reliability for long-term projects.

Support AI Vision Module
Support AI Vision Module

uHand robot hand can be expanded with the ESP32Cam module to unlock a wider range of creative vision applications, integrating AI capabilities into your robotic projects.

Built-in Bluetooth Module
Built-in Bluetooth Module

Expansion board includes a Bluetooth interface, facilitating seamless integration with Bluetooth modules—ideal for wireless control and project development.

Boundless Creativity
Boundless Creativity

Expand the capabilities of uHand robot hand with a variety of sensors and modules, unlocking endless possibilities for your innovative robotics projects and experiments.

Sonic Ranging
Sonic Ranging

You can position obstacles in front of the glowing ultrasonic module of uHand and move the obstacle toward the robot hand. The robot responds differently, with its RGB light changing color based on the distance from the obstacle. (Glowing ultrasonic sensor included only in Standard Kit.)

Pose Control
Pose Control

Utilize an acceleration sensor to detect the pose, which regulates the gripping and placing actions of the robotic hand. This interactive feature enhances precision and real-time control. (Acceleration sensor included only in Standard Kit.)

Sonic Target Grabbing
Sonic Target Grabbing

When the glowing ultrasonic module detects an object, the buzzer on the expansion board emits a sound, and the RGB light turns green. Place a ball in the palm center, prompting the robot to grasp it and rotate left to release, showcasing precise responsive actions.

Touch Grabbing
Touch Grabbing

Activate the uHand robot to open its hand and begin counting by touching the metal plate of the touch sensor. After all five fingers fully extend, the touch sensor closes all fingers to repeat the count. A smart interaction included only in the Standard Kit.

Robotic Arm uHand
uHand
miniArm
miniArm
miniAuto
miniAuto
MaxArm
MaxArm
LeArm
LeArm
xArm1S
xArm1S
xArmAI
xArmAI
Customer Reviews3.6 out of 5 stars (10 reviews)3.9 out of 5 stars (22 reviews)3.5 out of 5 stars (6 reviews)4.1 out of 5 stars (12 reviews)4.2 out of 5 stars (297 reviews)3.9 out of 5 stars (13 reviews)5.0 out of 5 stars (1 review)
Price$169.99$89.99$89.99$159.99$139.99$279.99$399.99
Controller SystemArduinoArduinoArduinoESP32 Controller6 Channels Servo ControllerArduinoESP32, CoreX
Control MethodAPP, Knob ControllerAPP, Knob ControllerAPPPC, APP, Wireless Handle, MousePC, APP, Wireless ControllerPC, APP, Wireless Handle, MousePC, APP, Wireless Controller
CommunicationBluetoothBluetoothBluetoothBluetooth, USB, WiFiBluetooth, USBBluetooth, USBBluetooth, USB, WiFi
DOFPan-tilt angle 180 degrees5DOF (4DOF + Gripper)Can add a gripper in front.4DOF + Suction Cup6DOF (5DOF + Gripper)6DOF (5DOF + Gripper)6DOF (5DOF + Gripper)
Power SupplyBatteries (included)Batteries (included)Batteries (included)12V 5A DC Adaptor7.5V 3A DC Power Adapter7.5V 6A DC Power Adapter7.5V 6A DC Power Adapter
MaterialAcrylicAcrylic plate + hard aluminumMetal BracketMetal & Carbon FiberAluminum AlloyAluminum AlloyAluminum Alloy
ServoLFD-06, LFD-01LDX-218, LD-1501MG, LFD-01MEncoder MotorHTS-35H Bus Servo, LFD-01MLDX-218, LD-1501MG, LFD-06LX-15D, LX-225 Bus ServoHTS-16L, HX-06L, LX-15D, LX-225
Product Dimension8×5×10 in (207×120×257 mm)8×5×13 in (207×120×339 mm)6.9×6.5×5.4 in (176×164×138 mm)6×6×10 in (160×160×260 mm)11.2×4.7×18.3 in (285×120×465 mm)6×5.5×16.8 in (154×140×426 mm)12×7×17 in (305×177×427 mm)
Product Weight1.5 lb (0.68 kg)1.5 lb (0.66 kg)1.6 lb (0.71 kg)3 lb (1.3 kg)2.73 lb (1.24 kg)1.98 lb (0.9 kg)5.7 lb (2.6 kg)
Package Size12×6×5 in (295×165×115 mm)12×6×5 in (295×165×115 mm)11.8×6.7×4.7 in (300×170×120 mm)11.7×8.3×6.9 in (298×210×175 mm)13.2×11.4×3.4 in (335×290×85 mm)13.2×11.4×3.4 in (335×290×85 mm)18×12×7 in (450×300×170 mm)
Package Weight2.2 lb (1 kg)2.4 lb (1.1 kg)2.4 lb (1.1 kg)4.4 lb (2 kg)4.4 lb (2 kg)4.84 lb (2.2 kg)5.7 lb (2.6 kg)

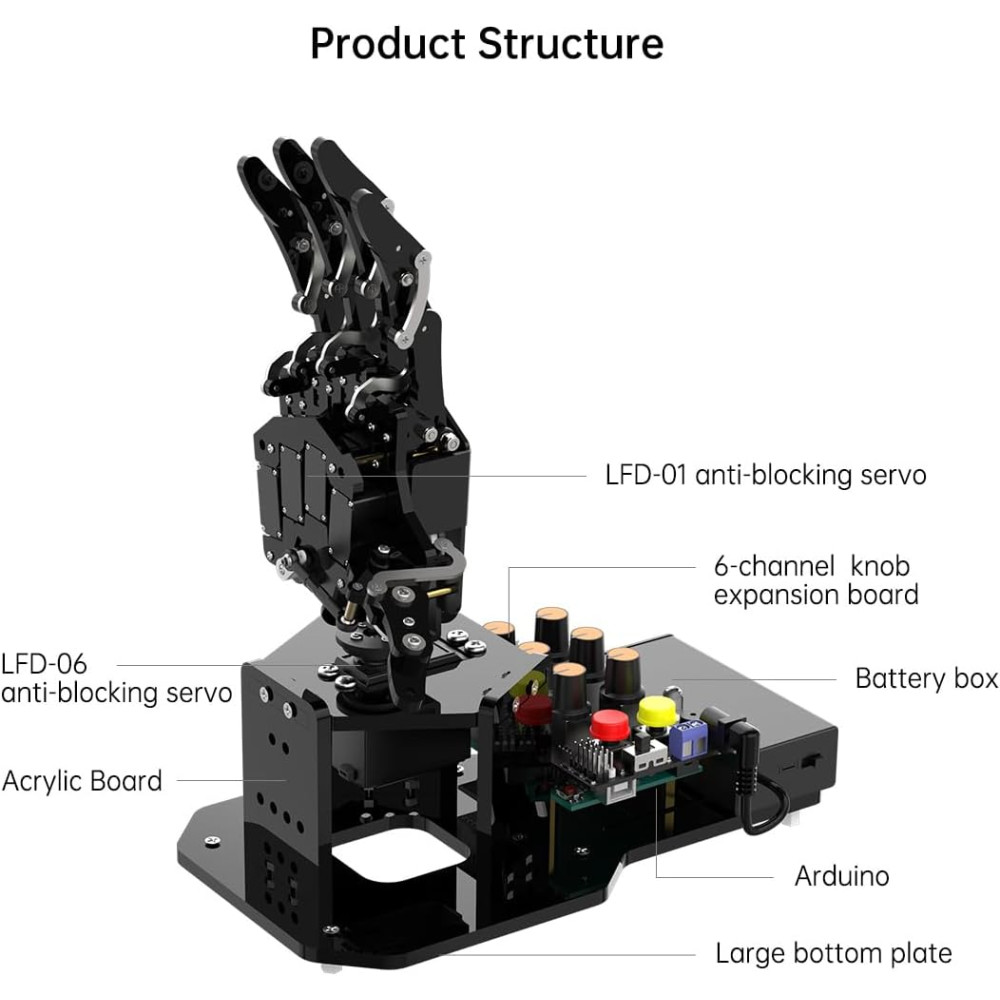

Robot Hand Instruction Diagram

Detailed instruction diagram illustrating the assembly and key functional parts of the uHand robotic hand. This visual guide helps users understand the mechanical structure and wiring layout for smooth DIY experience.

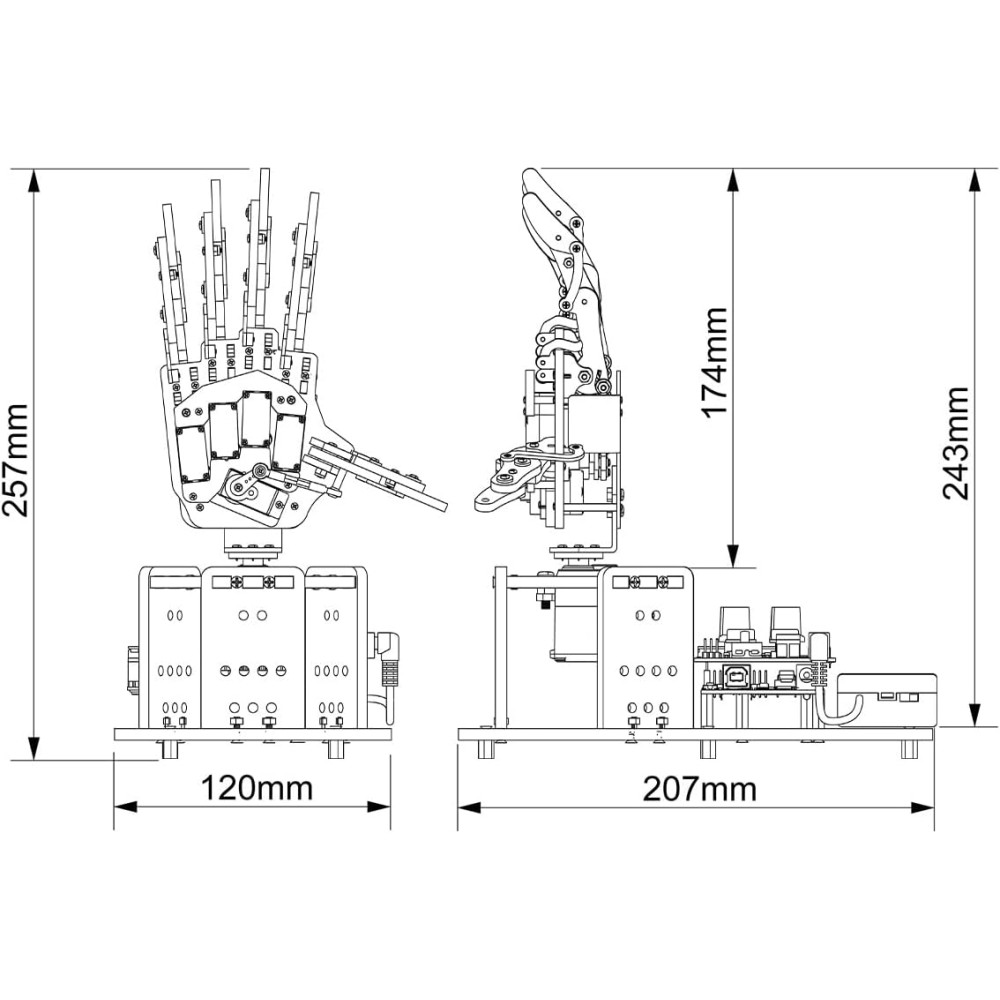

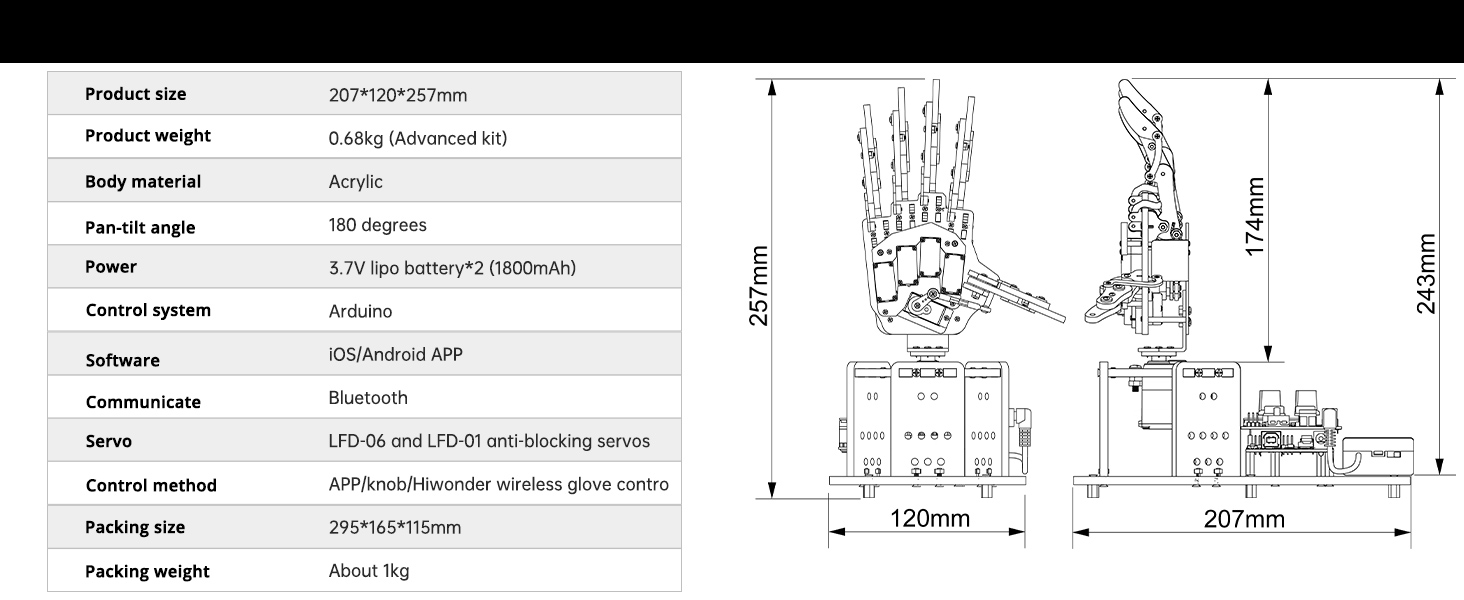

Specification Details

Comprehensive specification overview including hardware components, power requirements, dimensions, and control modalities, providing all necessary technical information for development and customization.

Support Sensor Expansion

Expansion capability for multiple sensor modules and peripherals, enabling seamless integration and extended functionalities tailored to your project’s evolving needs and innovations.

AI Vision Function

Showcasing the integration and application of AI Vision technologies through ESP32Cam and additional modules, providing intelligent perception capabilities for advanced robotics functions.

Robot Hand Package List

Complete package contents including all parts, modules, and components necessary to build, program, and operate the uHand robotic hand. Perfect for STEM enthusiasts looking for a full engineering kit.
